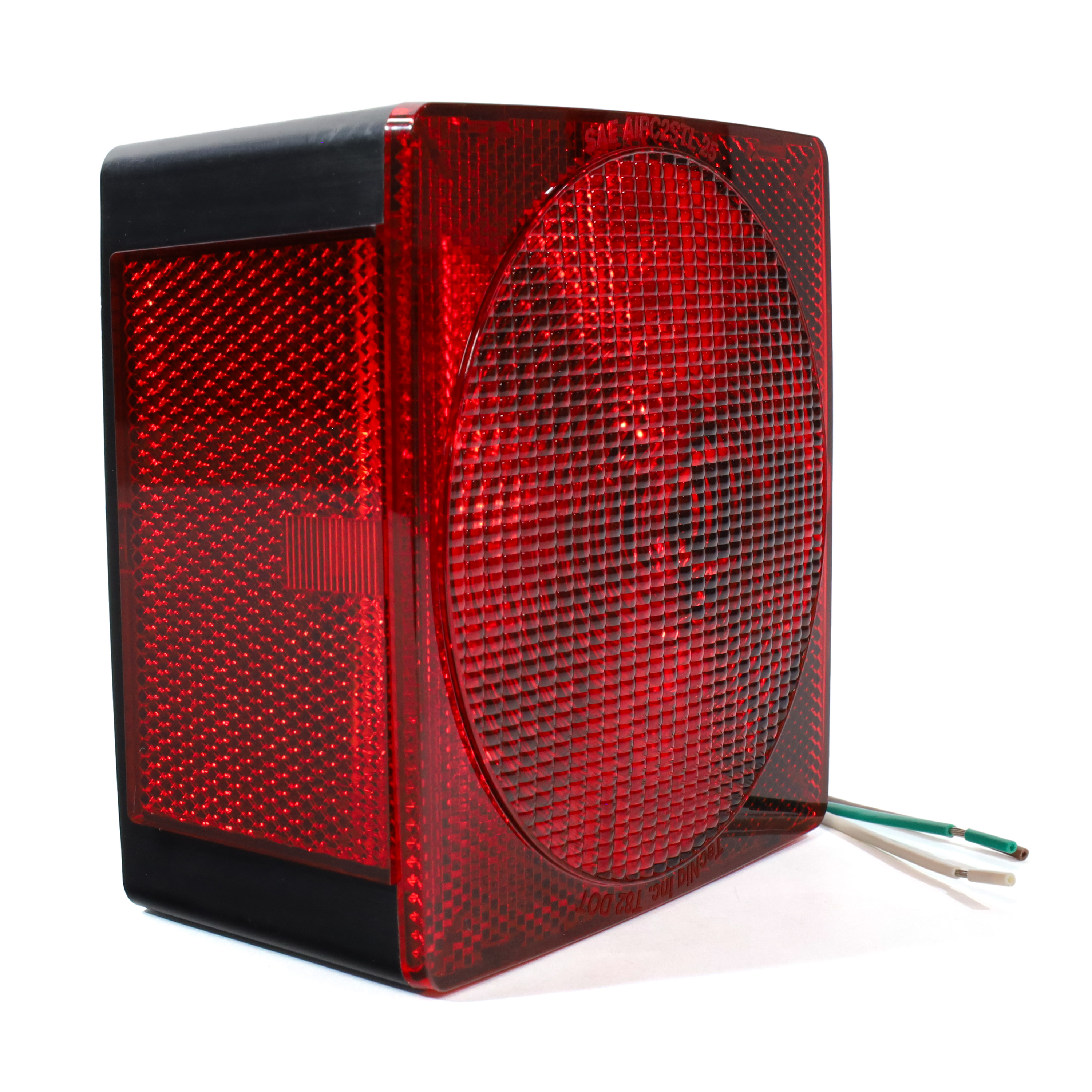

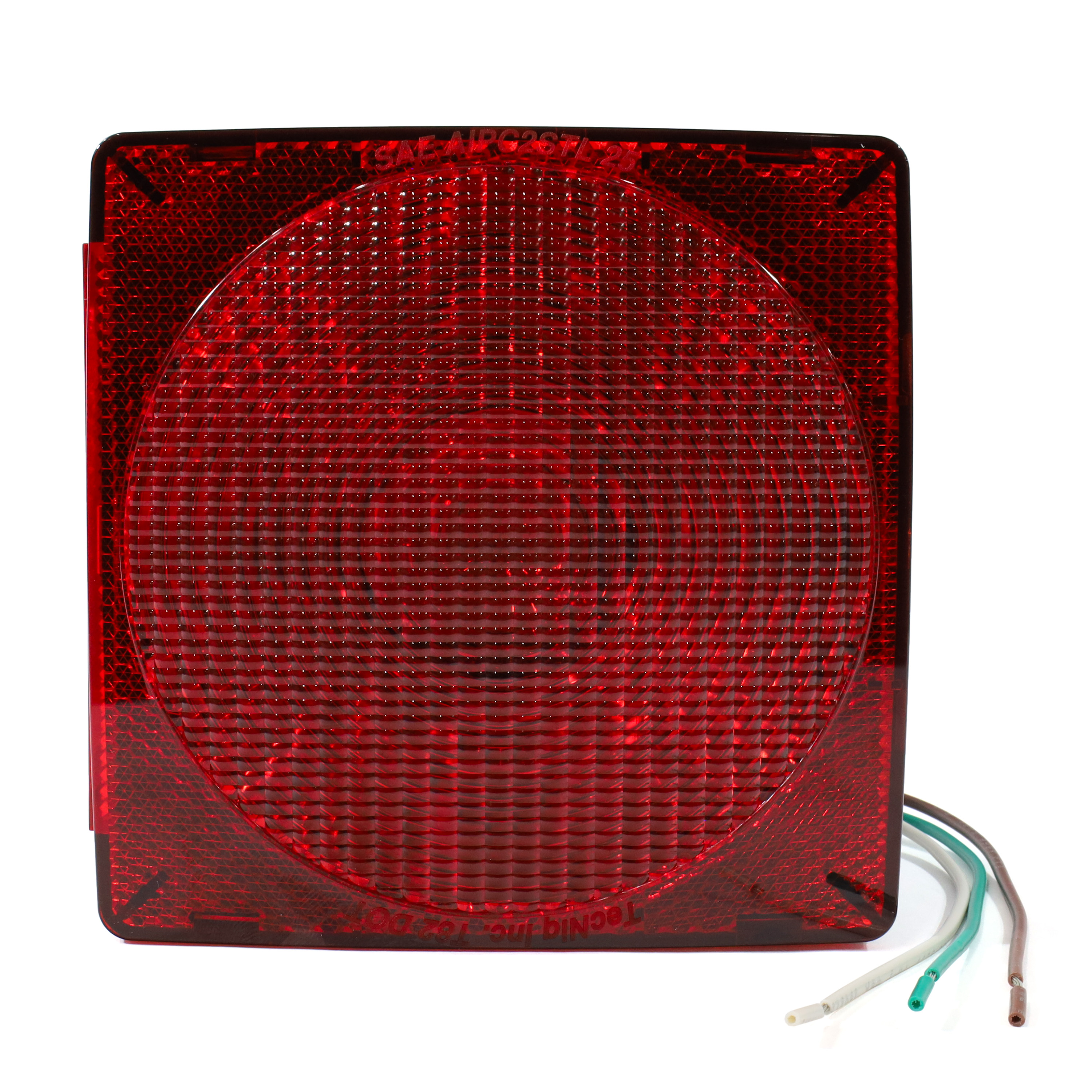

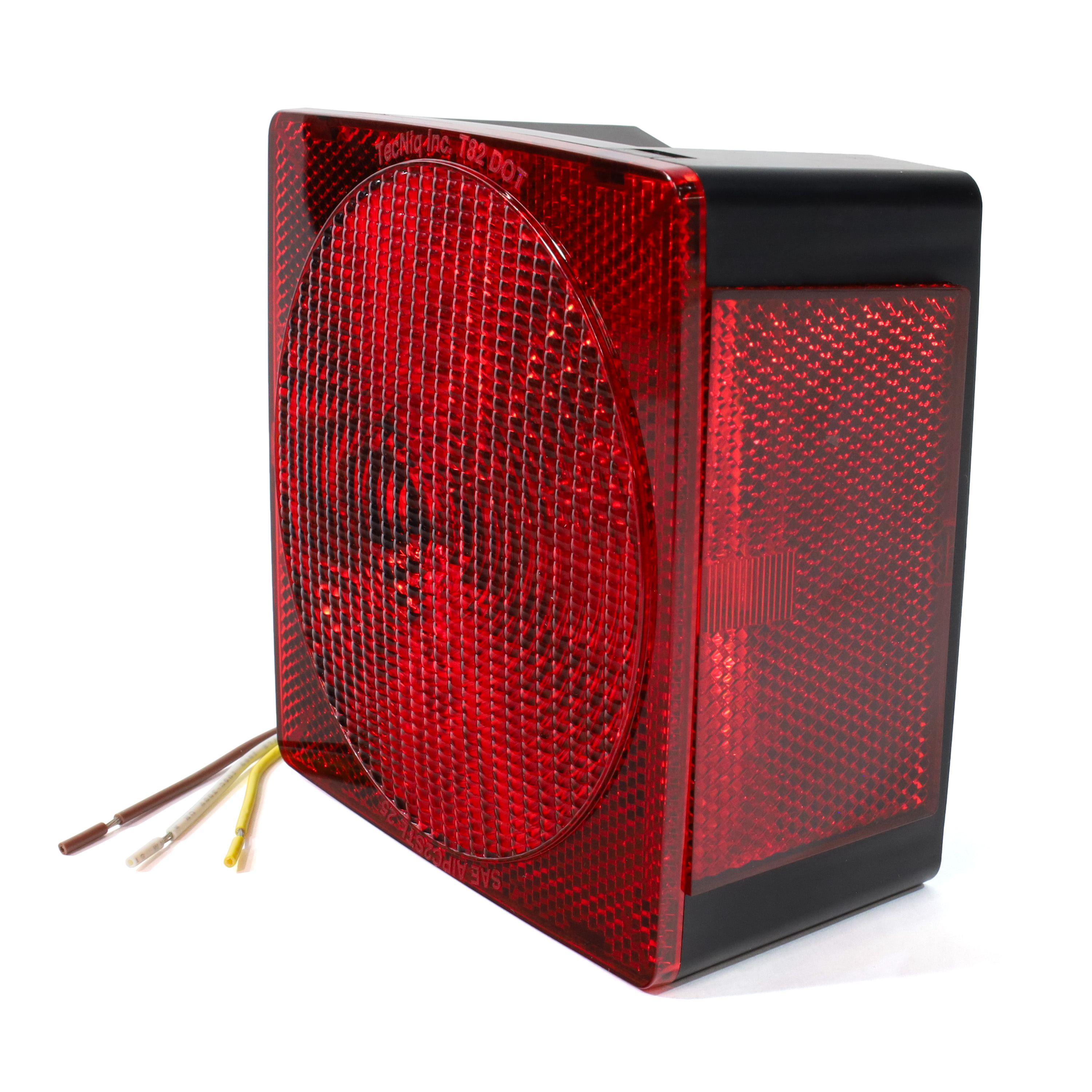

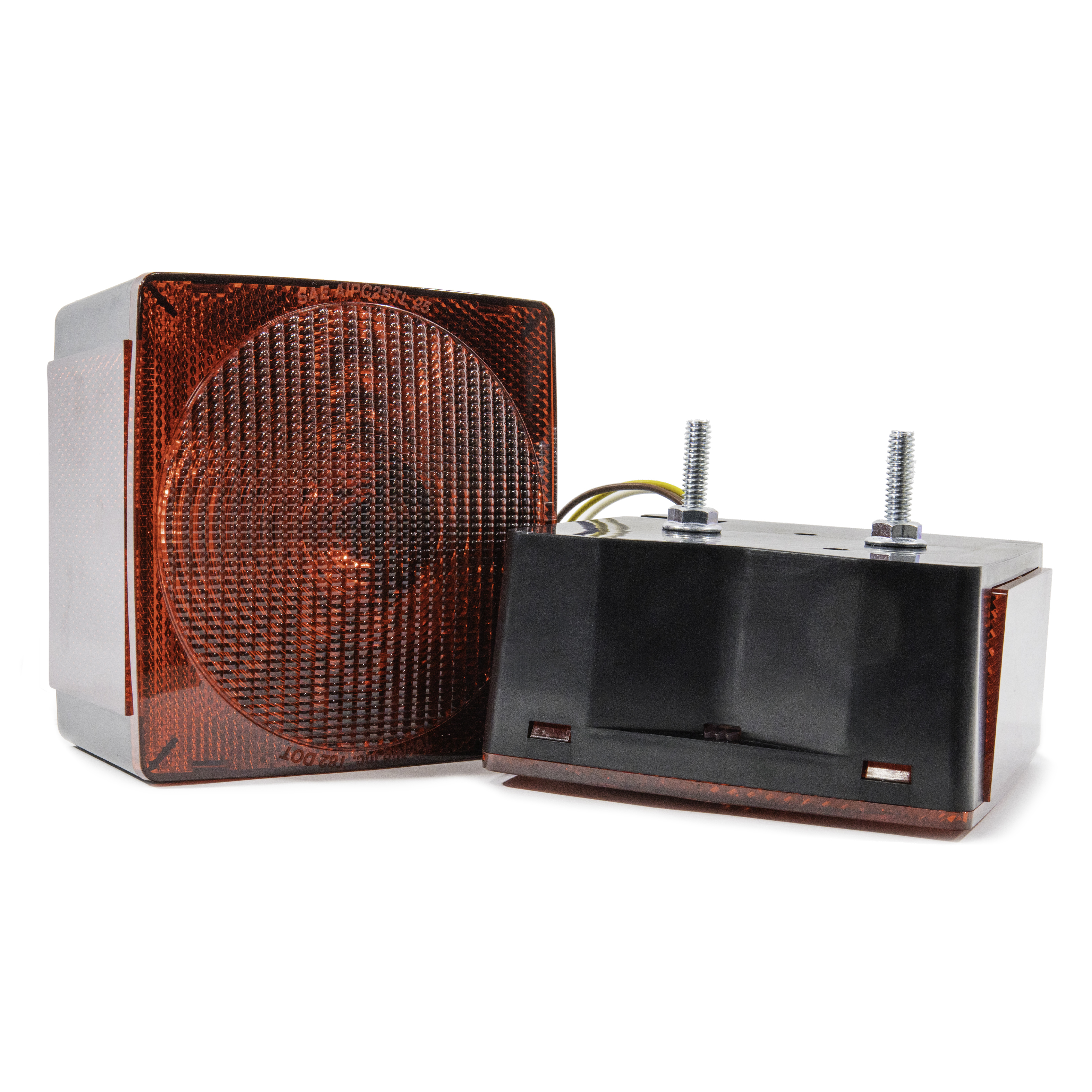

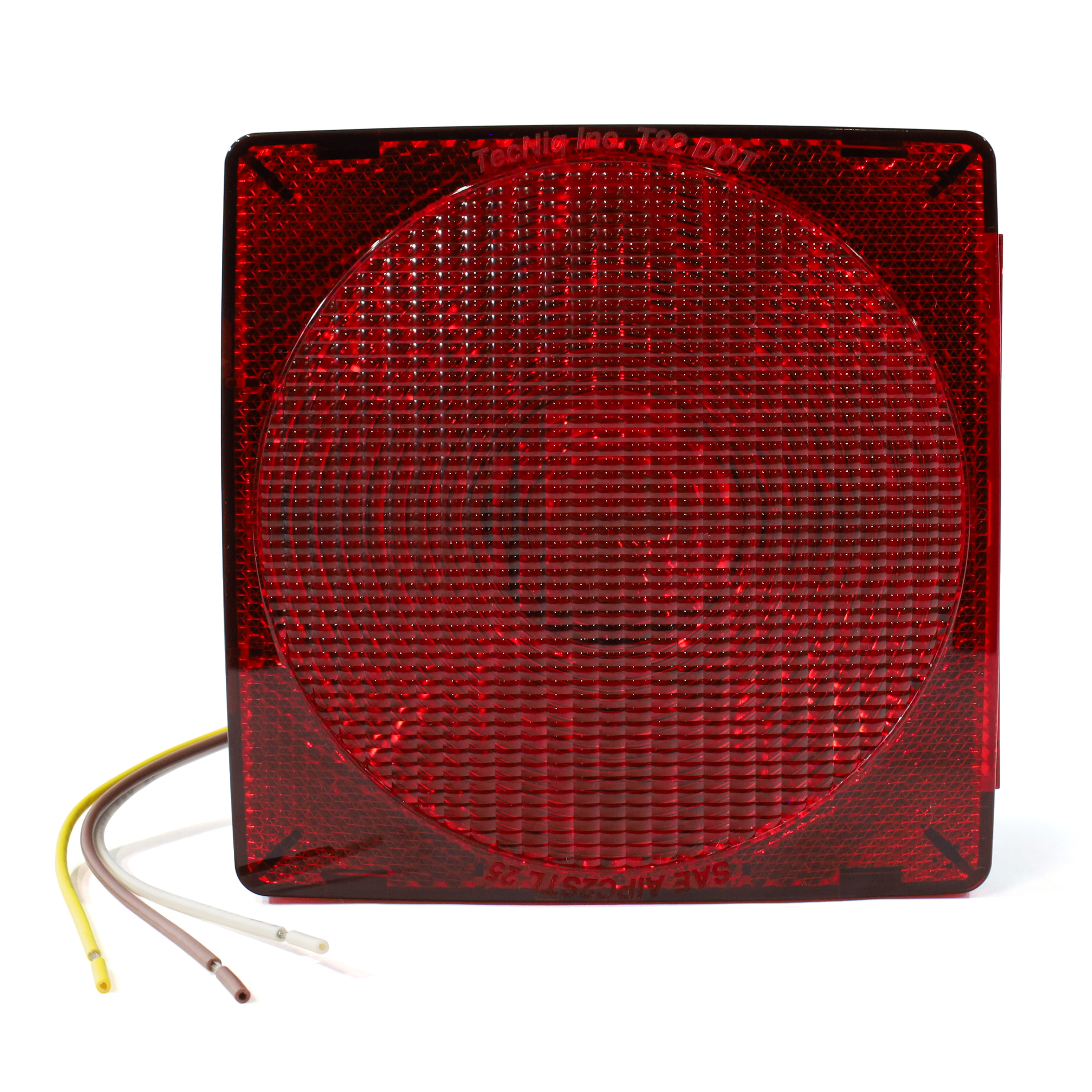

T82 4" Eight Function Box Tail Light
T82 4" Eight Function Box Tail Light
Technical Features
- Multi-Function 4" box tail light
- Functions include : Stop • Turn • Tail • Clearance • Side marker • Side Reflector • Rear Reflector • License Plate Light (Left)
IP68 Rated for Superior Dust & Water Protection
Meets and exceeds FMVSS 108 requirements for wide and narrow vehicles
The T82 is able to meet all requirements for stop, turn, tail, side marker, clearance marker, rear reflector, side reflector and license plate light in a revolutionary, cost-effective design. The T82 is sonically welded to create a fully sealed housing, ensuring maximum protection against water and environmental intrusion. A great choice for light-duty trailers, this all-in-one light helps simplify your lighting setup.
| Dimensions |
|
| LEDs | 1 |
| Current |
Stop/Turn: 0.153A - 0.207A Tail including Sidemarker/License: 0.085A - 0.115A |
| Connectors | Pigtail |

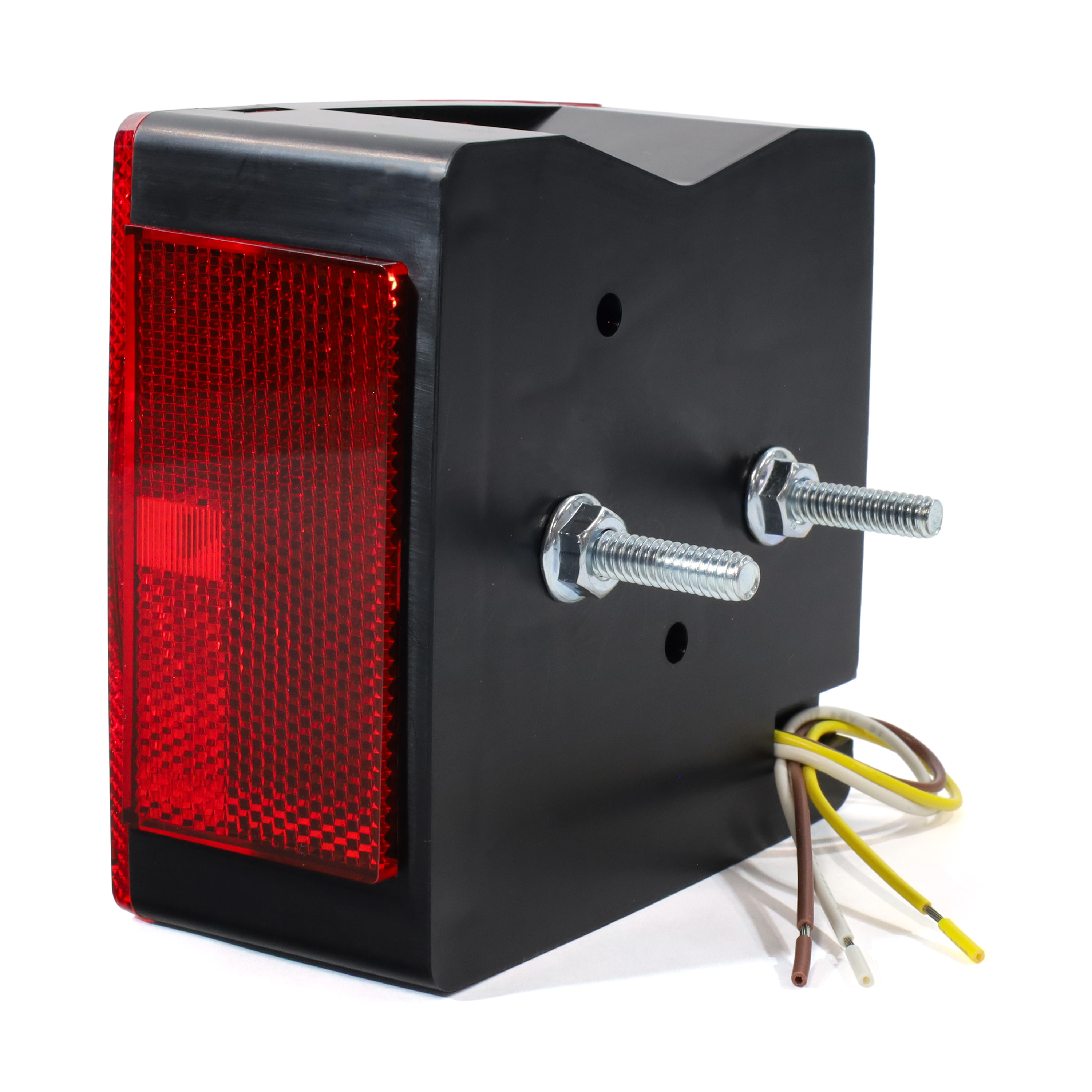

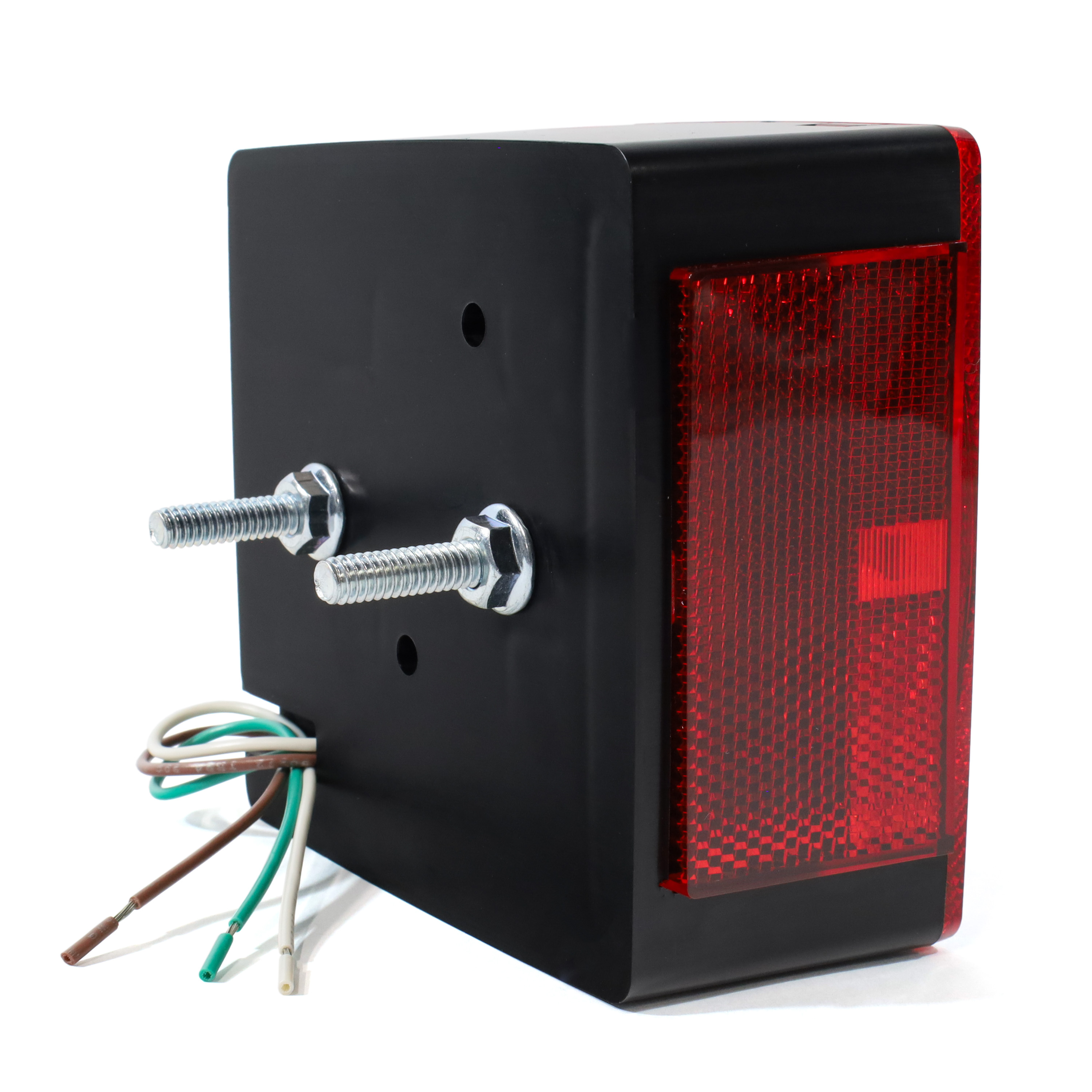

| Mounting | surface mount with Carriage bolt |
| LED Colors | White |
| Wire Colors |
White - Ground Green/Yellow - Stop/Trun Brown - Tail |
| Ground | White |
| Lens Colors | Red |
| Name | Description | LED | Lens | STD Pack | Connector | |
|---|---|---|---|---|---|---|
| T82-RRL0-1 |
4IN Box STTR LH
|
 |
 |
Pigtail | ||
| T82-RRR0-1 |
4IN Box STTR RH
|
|
|
pigtail |
