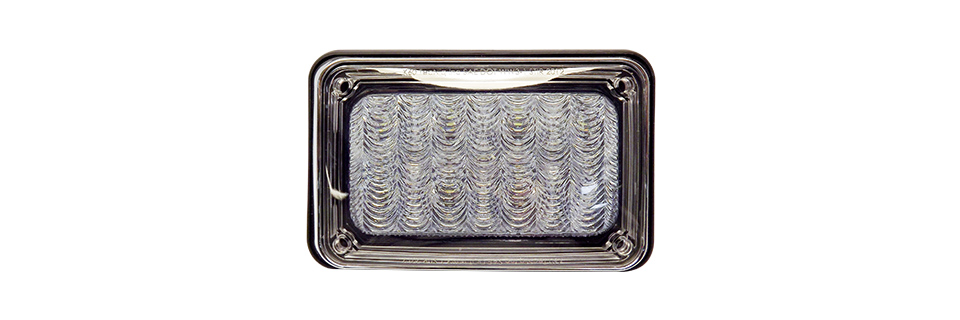

K60 Scene 6"x 4" LED Scene Light
K60 Scene 6"x 4" LED Scene Light
Technical Features
- Powerful 6"x 4" scene light fits standard mounting holes
- Lights are designed with Night Mode, by simply connecting yellow wire to 12V signal
- TecSeal Urethane Potting - Guaranteed Circuit Board Protection
Automotive grade polycarbonate - Impact and UV resistant
IP68 Rated for Superior Dust & Water Protection
- NFPA and Triple K compliant
- DOT stop/tail/turn reverse lamp compliance mode available on all lamps
| Dimensions |
|
| LEDs | 8 |
| Lumens | 2000 Source Lumens |
| Voltage | 9-14VDC |
| Current | ≈1.20A @ 12.8VDC |
| Connectors | 9" pigtail |
| Mounting |
Surface mount using just (4) screws (included)
Optional Chrome Quad Bezel
|
| Wire Colors |
Red Wire - 12V DC Power Black Wire - Ground Yellow Wire - Low Intensity (Night Mode) |
Downloadable Resources
| Name | Description | LED | Lens | STD Pack | Connector | |
|---|---|---|---|---|---|---|
| K60-0C40-1 |

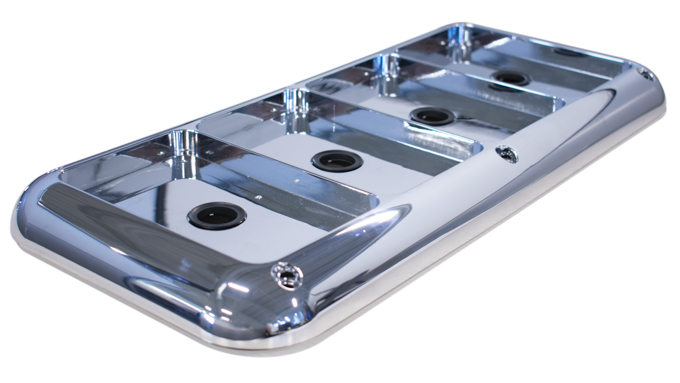

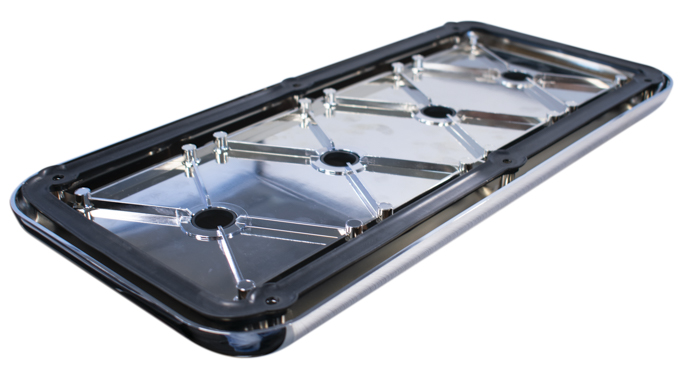

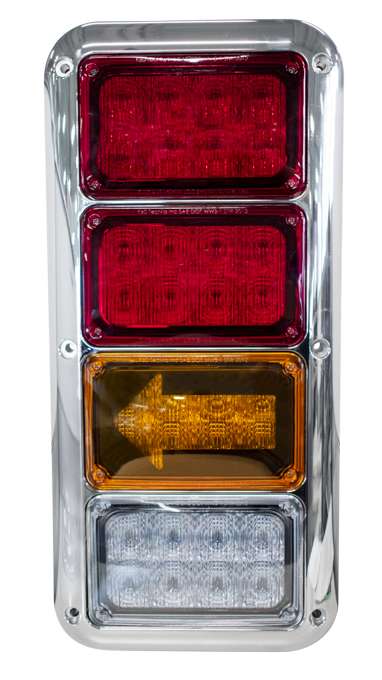

K60 Quad Bezel Chromed
|
1 | - | |||
| K60-1B00-1 |
K60 Black Trim and Gasket Kit
|
1 | - | |||
| K60-1C00-1 |
K60 Chrome Trim and Gasket Kit
|
1 | - | |||
| K60-SW00-1 |
K60 Scene Light
|
![]() |
![]() |
1 | Pigtail |
Prop 65 Warning
This product can expose you to chemicals including lead, which is known to the State of California to cause cancer, birth defects or other reproductive harm.
