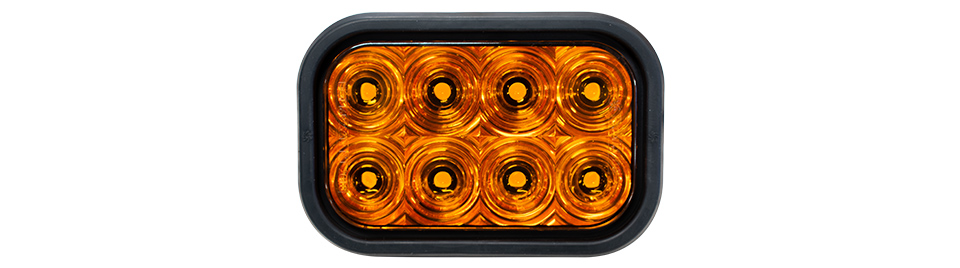

T71 Strobe 4" Rectangular LED Strobe/Flasher
T71 Strobe 4" Rectangular LED Strobe/Flasher
Technical Features
- Class 1 & Class 2 certified
- Can be mounted horizontal, vertical, or at any angle
- TecSeal Urethane Potting - Guaranteed Circuit Board Protection
Automotive grade polycarbonate - Impact and UV resistant
IP68 Rated for Superior Dust & Water Protection
Meets and exceeds FMVSS 108 requirements for wide and narrow vehicles
- Reliable performance for over 100,000 hours
With 8 diodes, TecNiq's T71 brightness is hard to miss. This grommet mount light can be installed at any angle and still meet DOT compliance. In addition, we offer a variety of connector styles and clear lens options on request.
| Dimensions |
|
| LEDs | 8 |
| Voltage | 9-14VDC |
| Current | 0.26A-0.34A - Amber |
| Connectors |
Amp Connector
|
| Mounting | Fits standard mounting holes |
| LED Colors | Amber |
| Angle |
|
| Wire Colors |
Red Wire - Strobe Function Black Wire - Ground White Wire - Pattern Change White yellow stripe - Wig-Wag onnect to power for opposite phase |
| Ground | Black |
Downloadable Resources
| Name | Description | LED | Lens | STD Pack | Connector | |
|---|---|---|---|---|---|---|
| T71-0G00-1 |
T71 Grommet
|
- | ||||
| T71-AAZP-1 |
4" Rectangular Class 1 Amber AutoSync Flasher w/Pigtails
|
 |
 |
24 | Pigtail |
