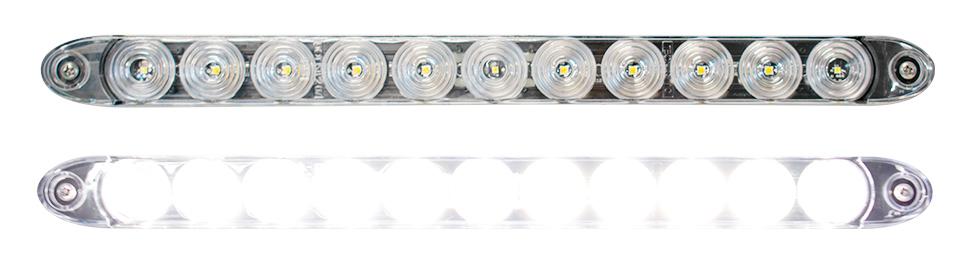

T10 Aux High-Output White LED Auxiliary Lamp
T10 Aux High-Output White LED Auxiliary Lamp
Technical Features
- Thin low-profile utility light with high performance
- Can be mounted horizontal, vertical or at an angle
- Slim design for use where space is a premium
- Reliable performance for over 100,000 hours
Shock and Vibration proof
- Auxiliary lamp for use on Heavy duty trucks, Semi-trailers, Cargo and Utility trailers, Boat trailers, or Work vehicles
This quality waterproof 15" lamp can be mounted in unique locations where space is a premium. While narrow and thin, it meets FMVSS requirements with a wide angle of bright illumination for maximum safety. Unlike similar lamps, ours is sonically welded for a lifetime of care free service. Made with top-quality circuit board materials, urethane potting and durable polycarbonate construction that you've come to expect from TecNiq, the quality and value of this lamp are unsurpassed in the industry.
| Dimensions |
|
| LEDs | 11 |
| Voltage | 9-14VDC |
| Current | 0.31A-0.38A - White |
| Connectors | 9" wire |
| Mounting | Surface mount using (2) #8 screws (screw covers included) |
| LED Colors | White |
| Wire Colors |
White Wire - 12V DC Power Black Wire - Ground |
| Ground | Black |
| Name | Description | LED | Lens | STD Pack | Connector | |
|---|---|---|---|---|---|---|
| T10-0B00-1 |
T10 Black Trim Ring
|
100 | - | |||
| T10-0C00-1 |
T10 Chrome Trim Ring
|
100 | - | |||
| T10-0G00-1 |
T10 Neoprene gasket
|
100 | - | |||
| T10-LC00-1 |
Low Profile Auxiliary Light
|
 |
 |
100 | Pigtail | |
| T10-LC0B-1 |
Low Profile Auxilary Light w/ .180 bullet
|
|
|
100 | 0.180" Bullets | |
| T10-LC0C-1 |
Auxiliary Lt Low Profile NtrlWht 11LED Clr Lns SM 2 Pole Conn
|
|
|
100 | ||
| T10-LC0D-1 |
Neutral White 11LED Clear Lens Low Profile Auxiliary 9IN Lead W/xTM04-2P Conn
|
|
|
100 | ||
| T10-LC9M-1 |
Low Profile Auxilary Light w/.156" Bullets
|
|
|
100 | 0.156" Bullets |
Prop 65 Warning
This product can expose you to chemicals including lead, which is known to the State of California to cause cancer, birth defects or other reproductive harm.
