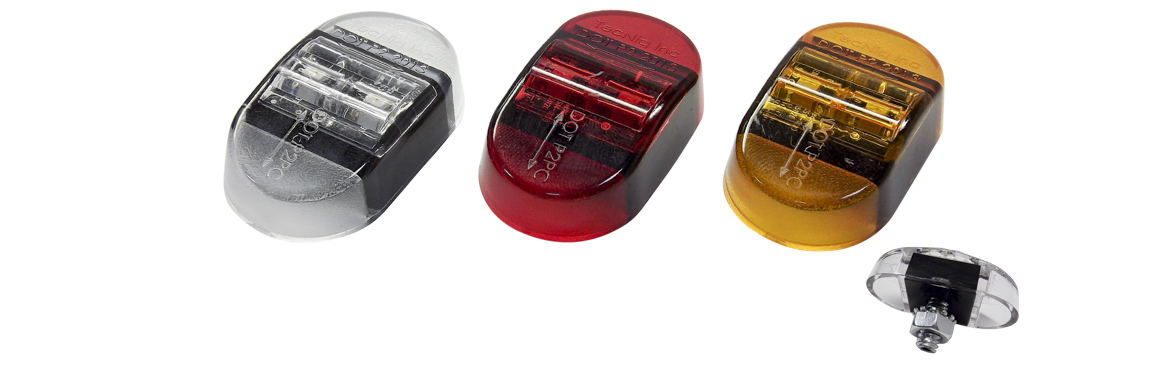

S14 PC/P2 Rated Marker Light
S14 PC/P2 Rated Marker Light
Technical Features
- Brilliant illumination in a compact size
IP68 Rated for Superior Dust & Water Protection
- TecSeal Urethane Potting - Guaranteed Circuit Board Protection
- Stud-mounted, no visible fasteners
Meets and exceeds FMVSS 108 requirements for wide and narrow vehicles
- Reliable performance for over 100,000 hours
- Vertical mount positions meets P2 specifications, while horizontal mount meets PC specifications
The TecNiq S14 stud mounted side marker is designed to meet both PC and P2 specifications dependent on mounting position. The S14 produces high illumination for a compact size and has no visible fasteners. Built with quality materials, TecSeal and IP68 rated this light is both durable and backed by our lifetime guarantee.

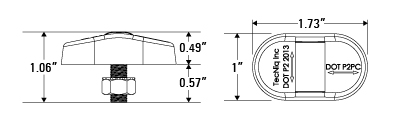

| Dimensions |
|
| LEDs | 2 |
| Voltage | 9-14VDC |
| Current |
0.07A-0.09A - Colored lens 0.04A-0.07A - Clear Lens |
| Connectors |
6" 24" |
| Mounting | Stud Mounted, no visible fasteners |
| LED Colors | Red • Amber |
| Angle |
|
| Wire Colors |
Black Wire - 12VDC Power Stainless Steel Stud - Ground |
| Name | Description | LED | Lens | STD Pack | Connector | |
|---|---|---|---|---|---|---|
| S14-0S40-1 |
S14 Stainless Steel Trim Ring
|
 |
100 | Pigtail | ||
| S14-AAP0-1 |
S14 Amber PCP2 Stud Mount Stainless Steel Marker Light Amber Lens Pigtail
|
 |
 |
100 | Pigtail | |
| S14-AAP1-1 |
S14 Amber PCP2 Stud Mount Stainless Steel Marker Light Amber Lens W/24" Pigtail
|
|
|
100 | Pigtail | |
| S14-AAS0-1 |
S14 Amber PCP2 Stud Mount Marker Light Amber Lens Pigtail
|
|
|
100 | Pigtail | |
| S14-AAS1-1 |
S14 Amber PCP2 Stud Mount Marker Amber Lens, 24" Wire
|
|
|
100 | Pigtail | |
| S14-RCS0-1 |
S14 Red PCP2 Stud Mount Marker Light Clear Lens Pigtail
|
 |
|
100 | Pigtail | |
| S14-RRP0-1 |
S14 Red PCP2 Stud Mount Stainless Steel Marker Light Red Lens Pigtail
|
|
 |
100 | Pigtail | |
| S14-RRP1-1 |
S14 Red PCP2 Stud Mount Stainless Steel Marker Light Red Lens W/24" Pigtail
|
|
|
100 | Pigtail | |
| S14-RRS0-1 |
S14 Red PCP2 Stud Mount Marker Light Red Lens Pigtail
|
|
|
100 | Pigtail | |
| S14-RRS1-1 |
S14 Red PCP2 Stud Mount Marker Red Lens, 24" Wire
|
|
|
100 | Pigtail | |
| S14-RRSB-1 |
Red PCP2 3/8 inch Stud Mount Marker Red Lens With .180 Bullet
|
|
|
100 | Pigtail |
Prop 65 Warning
This product can expose you to chemicals including lead, which is known to the State of California to cause cancer, birth defects or other reproductive harm.
