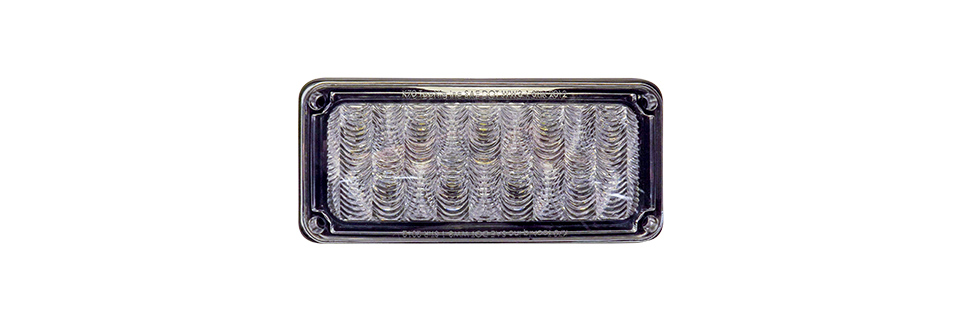

K70 Scene 7"x 3" LED Scene Light
K70 Scene 7"x 3" LED Scene Light
Technical Features
- Powerful 7"x 3" warning lamp fits standard mounting holes
- Lights are designed with Night Mode, by simply connecting yellow wire to 12V signal
- TecSeal Urethane Potting - Guaranteed Circuit Board Protection
Automotive grade polycarbonate - Impact and UV resistant
IP68 Rated for Superior Dust & Water Protection
- NFPA and Triple K compliant
- DOT stop/tail/turn/reverse lamp compliance mode available on all lamps
| Dimensions |
|
| LEDs | 9 |
| Lumens | 2500 Source Lumens |
| Voltage | 9-14VDC |
| Current | ≈1.20A @ 12.8VDC |
| Connectors | 9" pigtail |
| Mounting | Surface mount using just (4) screws (included) |
| Wire Colors |
Red Wire - 12V DC Power Black Wire - Ground Yellow Wire - Low Intensity (Night Mode) |
Downloadable Resources
| Name | Description | LED | Lens | STD Pack | Connector | |
|---|---|---|---|---|---|---|
| K70-0100-1 |
K60 & K70 Anchor/Screw Kit
|
1 | - | |||
| K70-1B00-1 |
K70 Black Trim and Gasket Kit
|
1 | - | |||
| K70-1C00-1 |
K70 Chrome Trim and Gasket Kit
|
1 | - | |||
| K70-SW00-1 |
K70 High Output Scene Light
|
![]() |
![]() |
1 | Pigtail |
